UNIVERSAL RAMP
Universal ramp (UR) is designed for installation of floating quays to the non-equipped shore if there is no root for providing the passage of the cartepillar and wheeled transport from the pontoon to the shore.

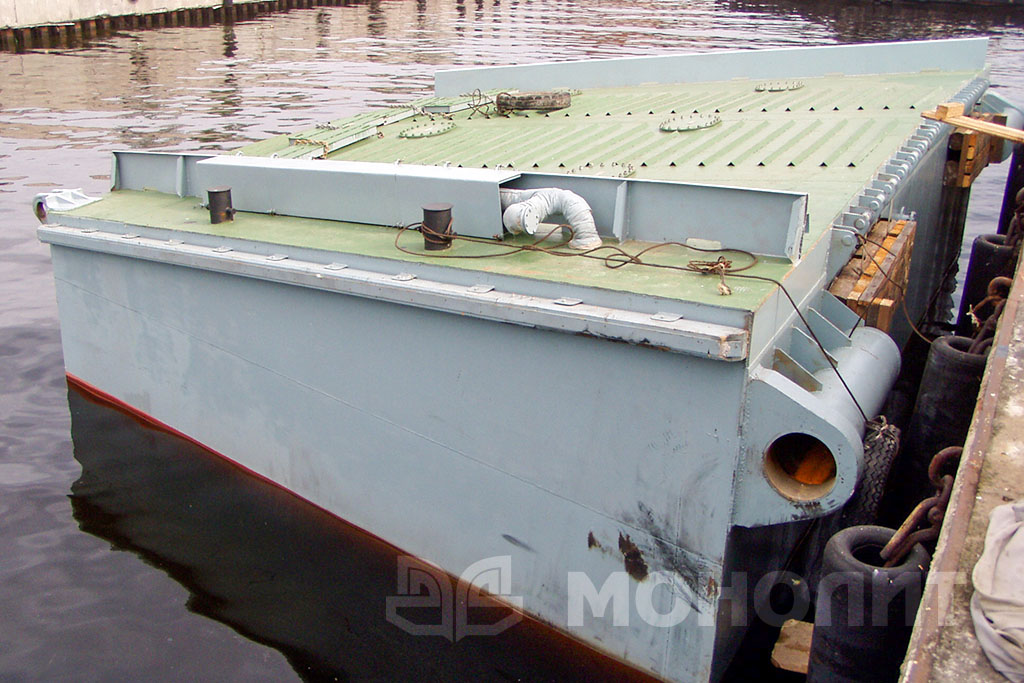

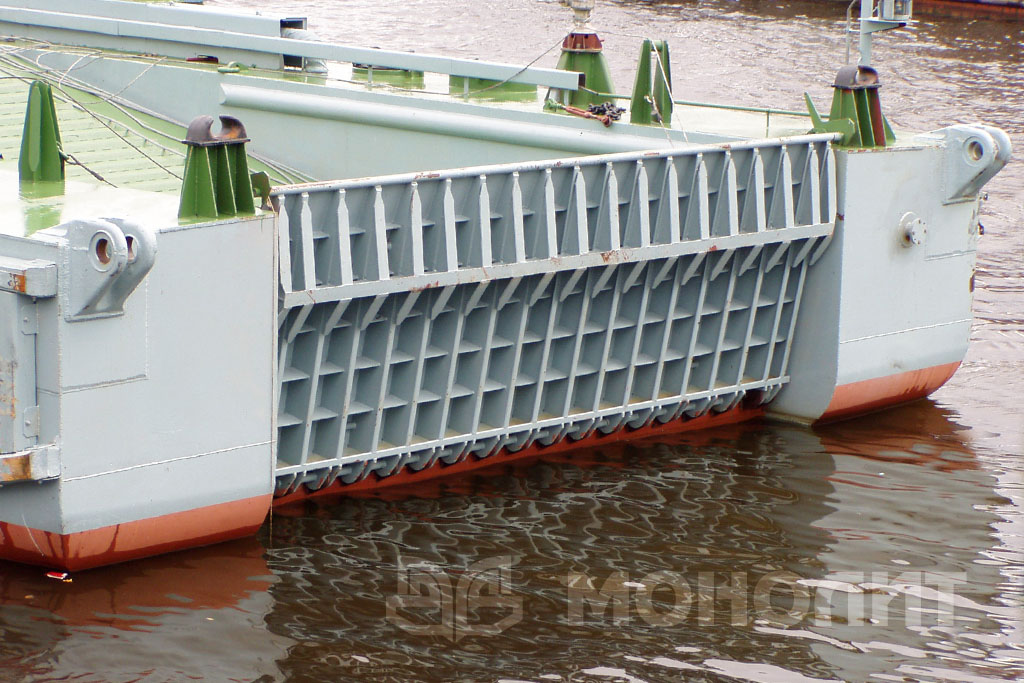

UR is designed as a separate unit of the floating structure and consists from a main pontoon and a special floating spacer, provided for connection of the UR with heavy-weight floating quays.
| Length overall of the ramp, m | about 45 |
| Breadth overall of the ramp, m | 12,4 |
| Length of the main pontoon of the ramp, m | 36 |
| Breadth of the main pontoon of the ramp, m | 8,19 |
| Ramp main pontoon height, m | 2,2 |
| Length of the spacer of the ramp, m | 7,2 |
| Breadth of the spacer of the ramp, m | 8,2/11,9 |
| Height of the spacer's side of the ramp, m | 2,2/3,1 |
Universal ramp provides for:
- installation of the semi-heavyweight and heavy-weight quays at the non-equipped shore;

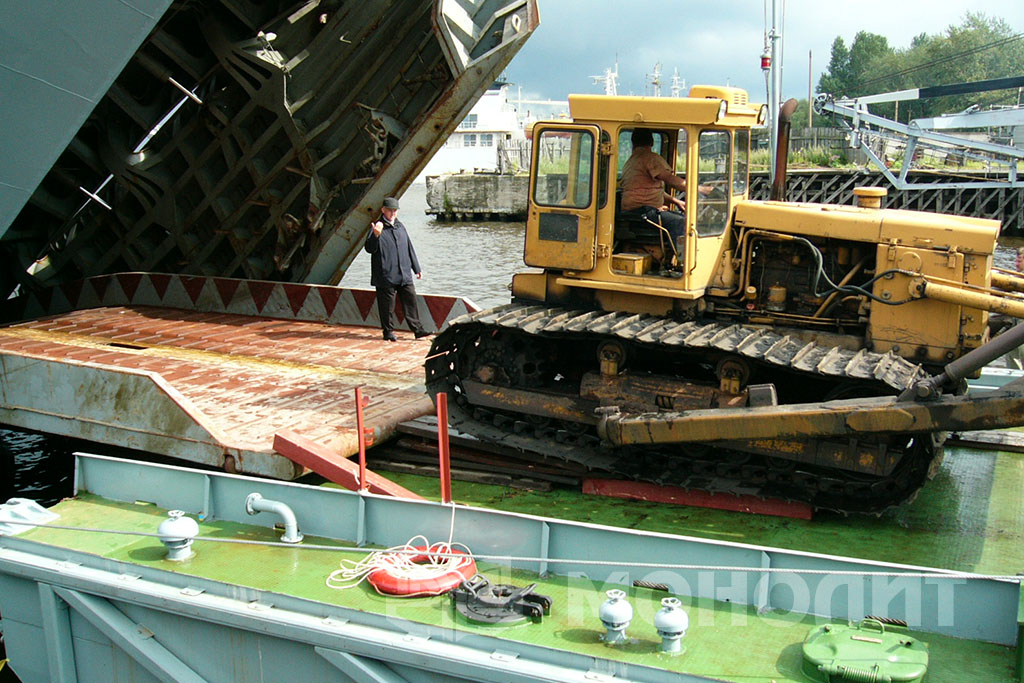

- landing operation from the assault ship;
- carrying out of cargo handling operations by means of pneumatically driven wheeled and caterpillar transport on the main pontoon of the ramp;
- domestic fresh water supply and electric power supply from the shore to the quays.

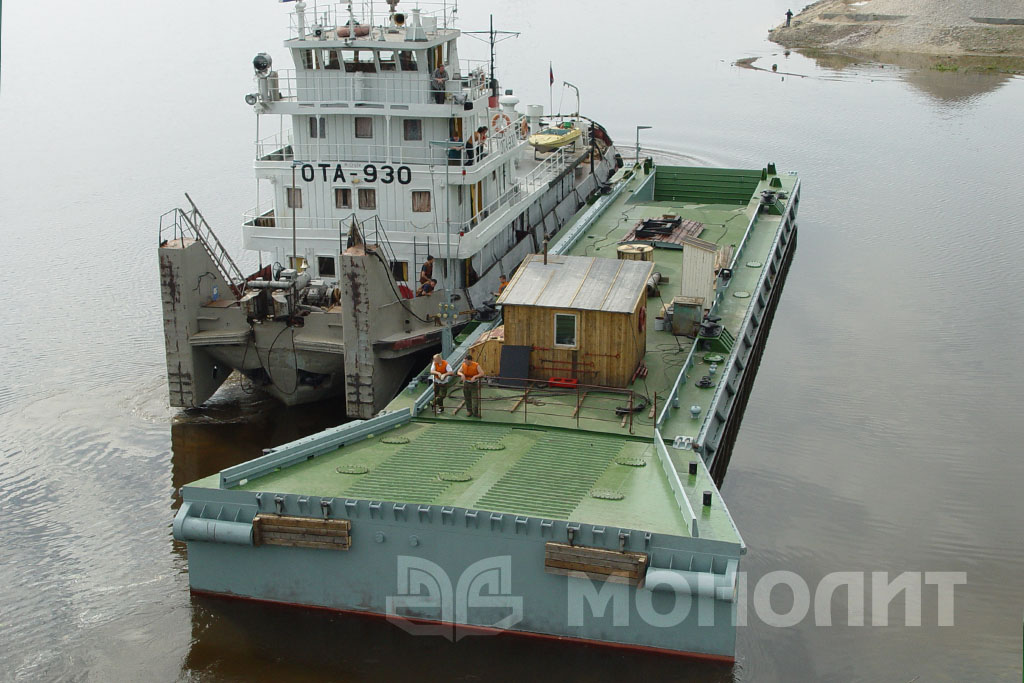

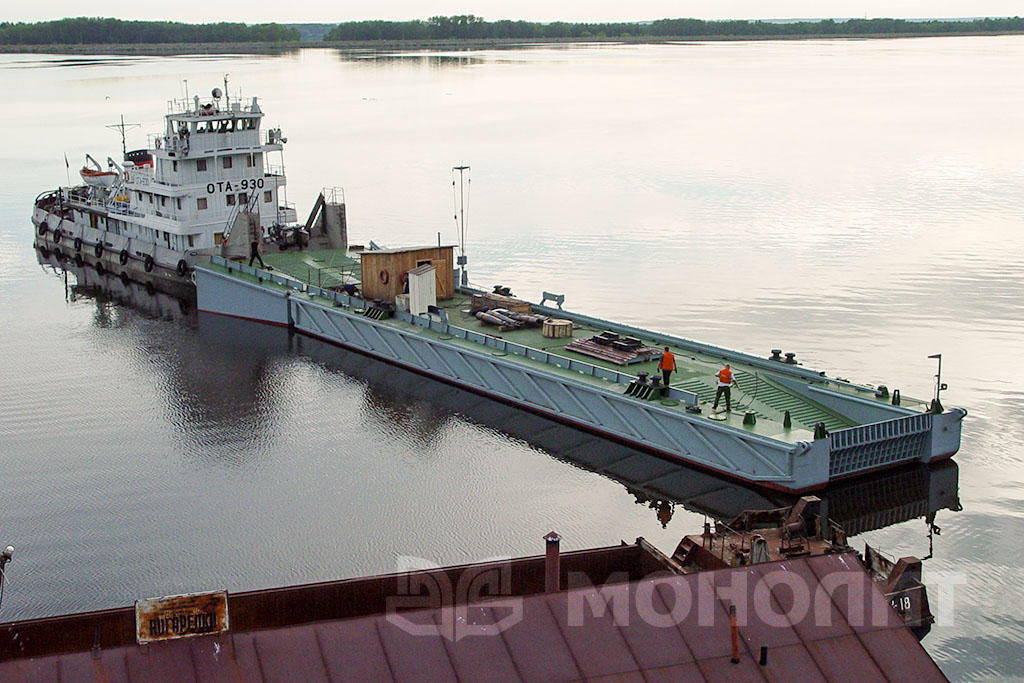

The main pontoon of the ramp can be used as a ferryboat for delivery of cargo and machinery.

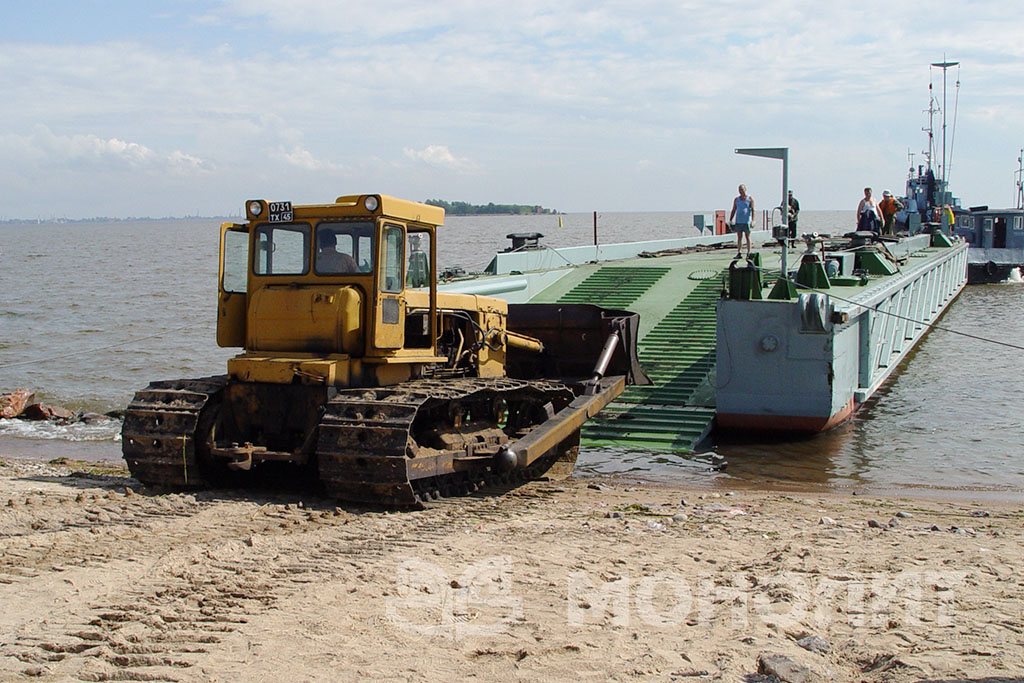

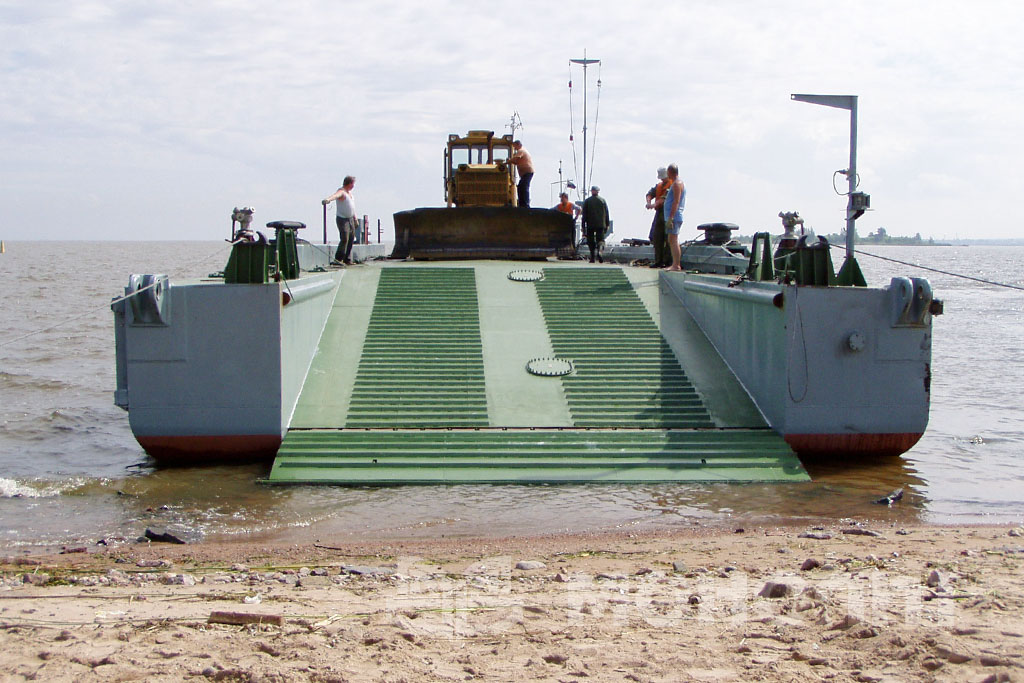

INSTALLATION AT THE NON-EQUIPPED SHORE

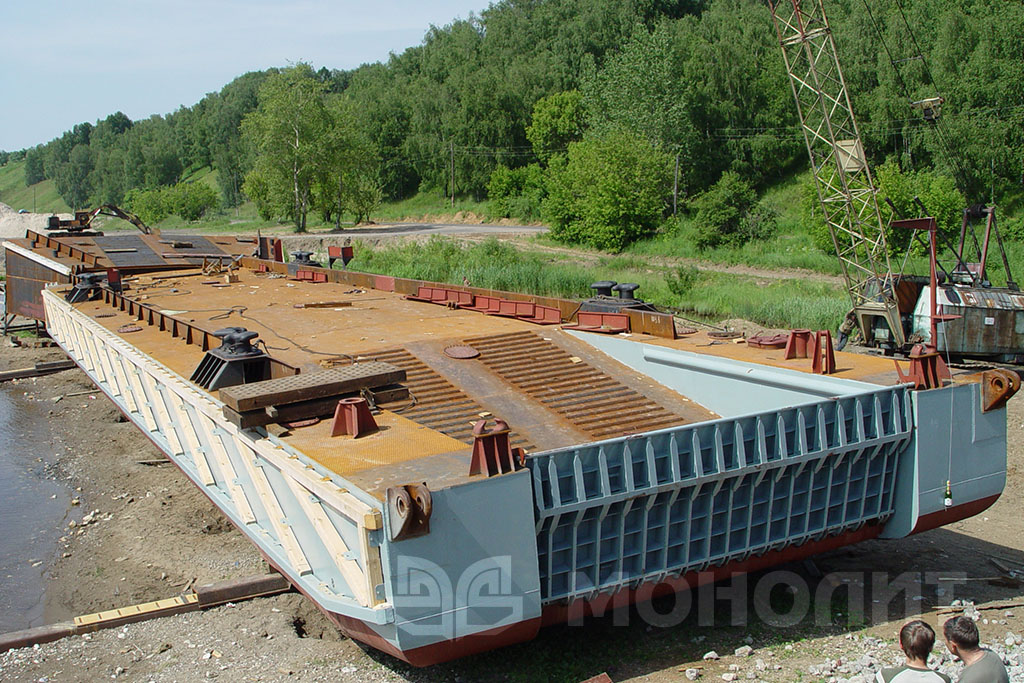

CONSTRUCTION OF THE RAMP AT THE PRODUCTION PLANT OF CDB "MONOLIT"
